Protective coatings for mining assets
Protecting the assets that keep mining moving.
MANUFACTURER SYSTEM GUIDANCE
Start with the application.
From exposed mine structures and mobile equipment to process areas and storage tanks, ALKA manufactures coating systems for defined mining service conditions.
Explore the asset pages below for relevant coating builds, selection guidance and product information. Each page separates external protection, maintenance and specialist lining requirements.
EXPLORE APPLICATIONS
Coating solutions by asset.
Mine Sites
Protection across the mine, from steelwork to service assets.
Explore systems & guidance →

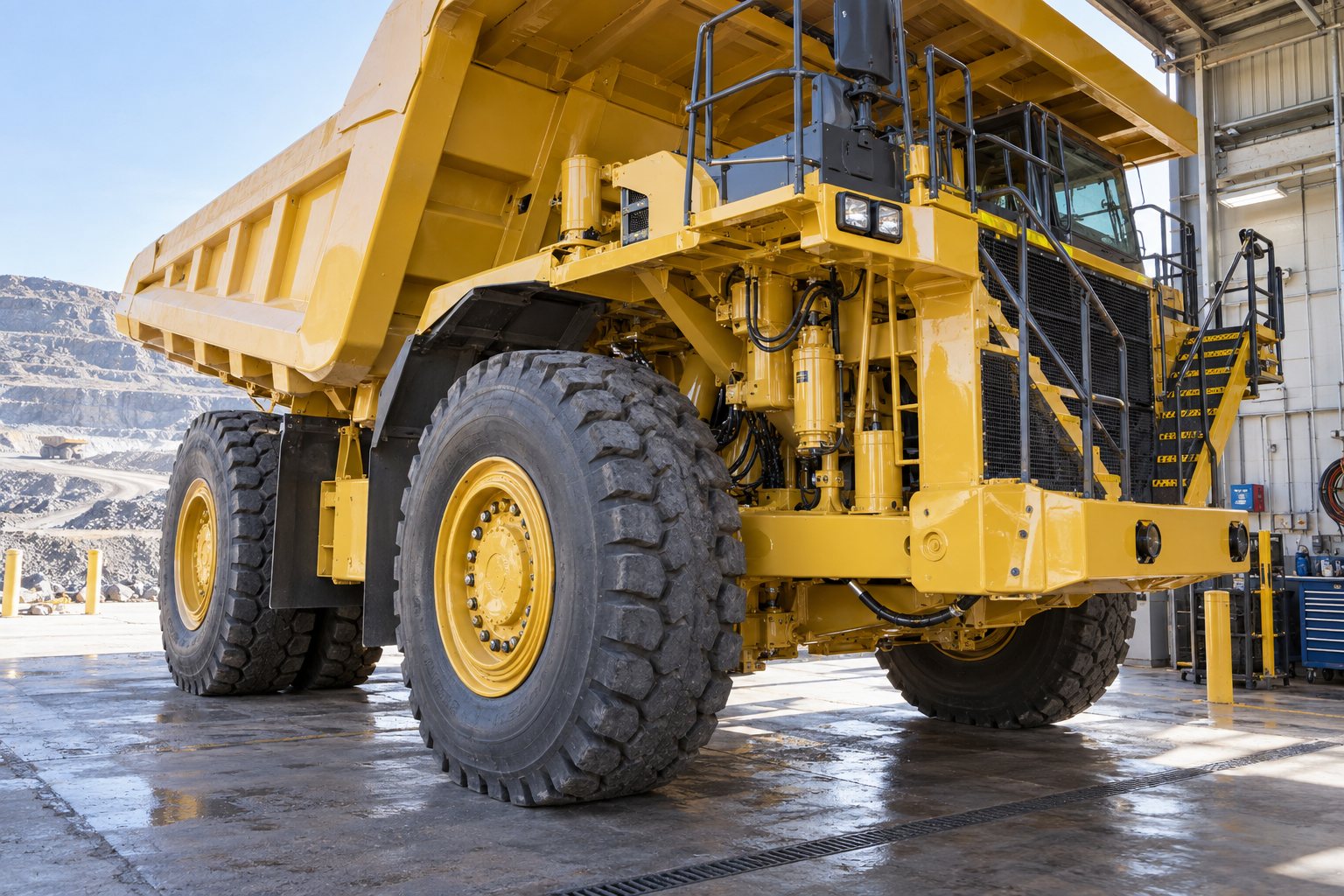

Mining Equipment
Corrosion protection for the equipment behind production.
Explore systems & guidance →

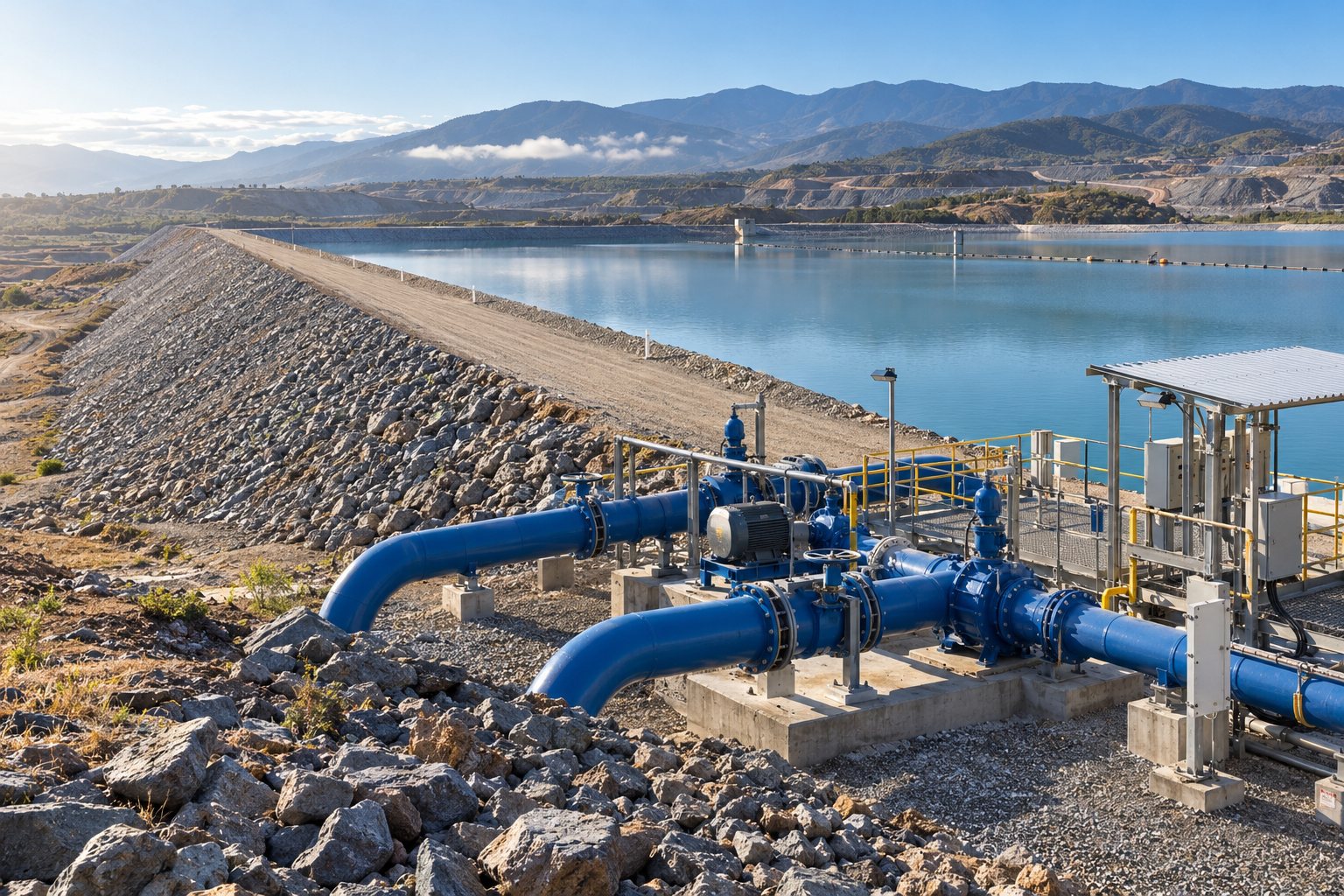

Tailings & TSF Assets
Protect the supporting assets around tailings operations.
Explore systems & guidance →

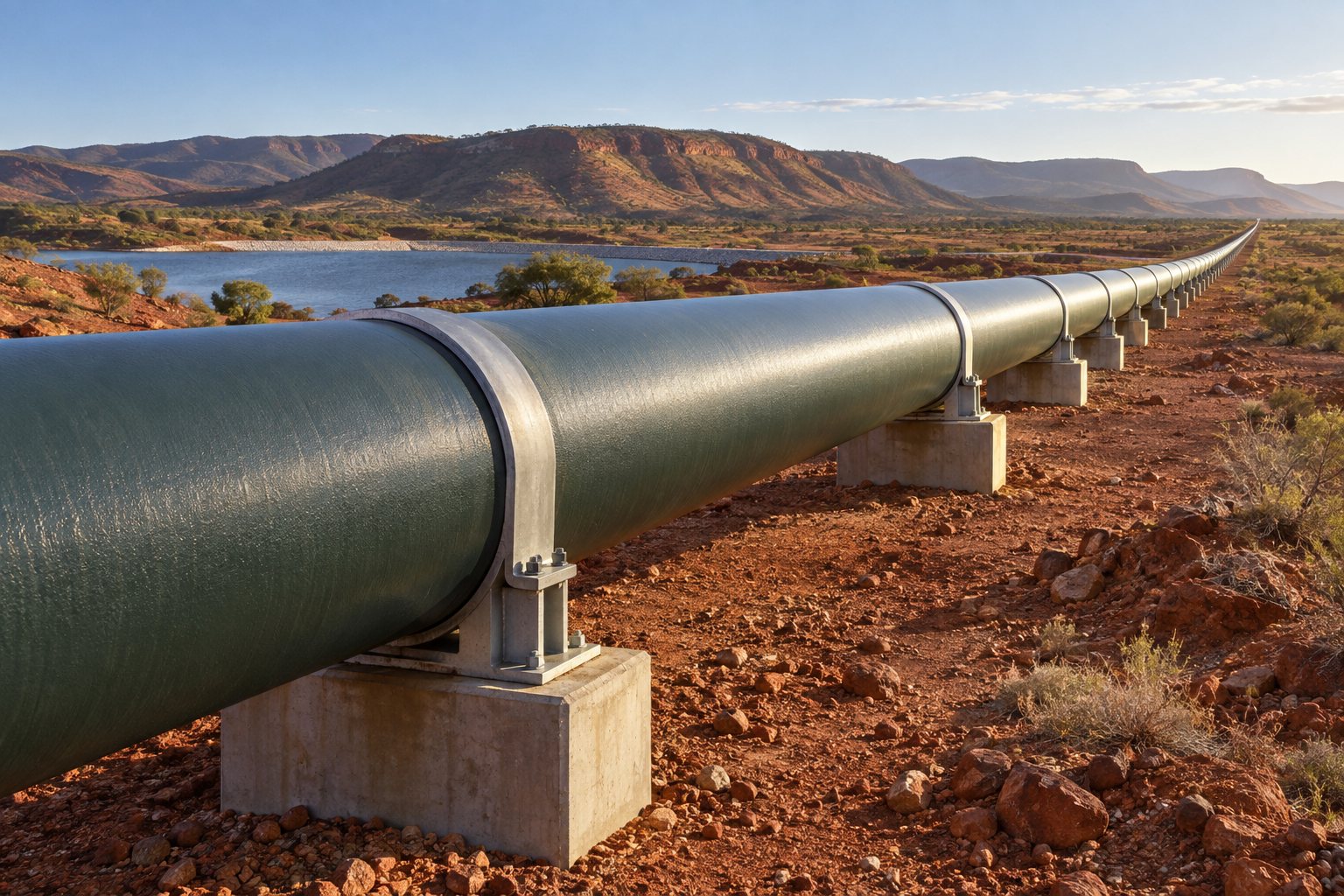

Mining Pipelines
Separate external corrosion protection from internal duty.
Explore systems & guidance →

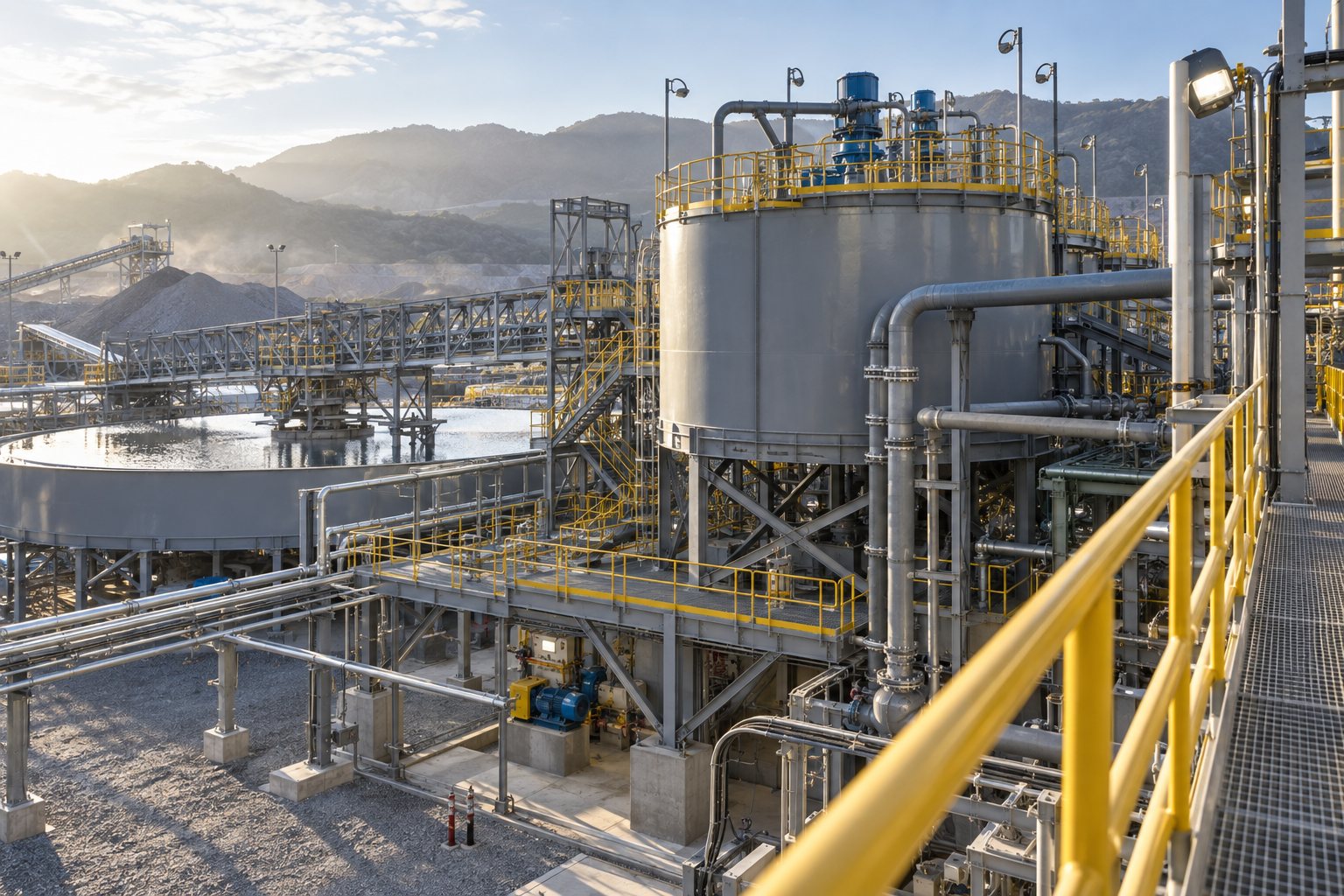

Mineral Processing Plants
A coordinated coating approach for process steel and wet areas.
Explore systems & guidance →

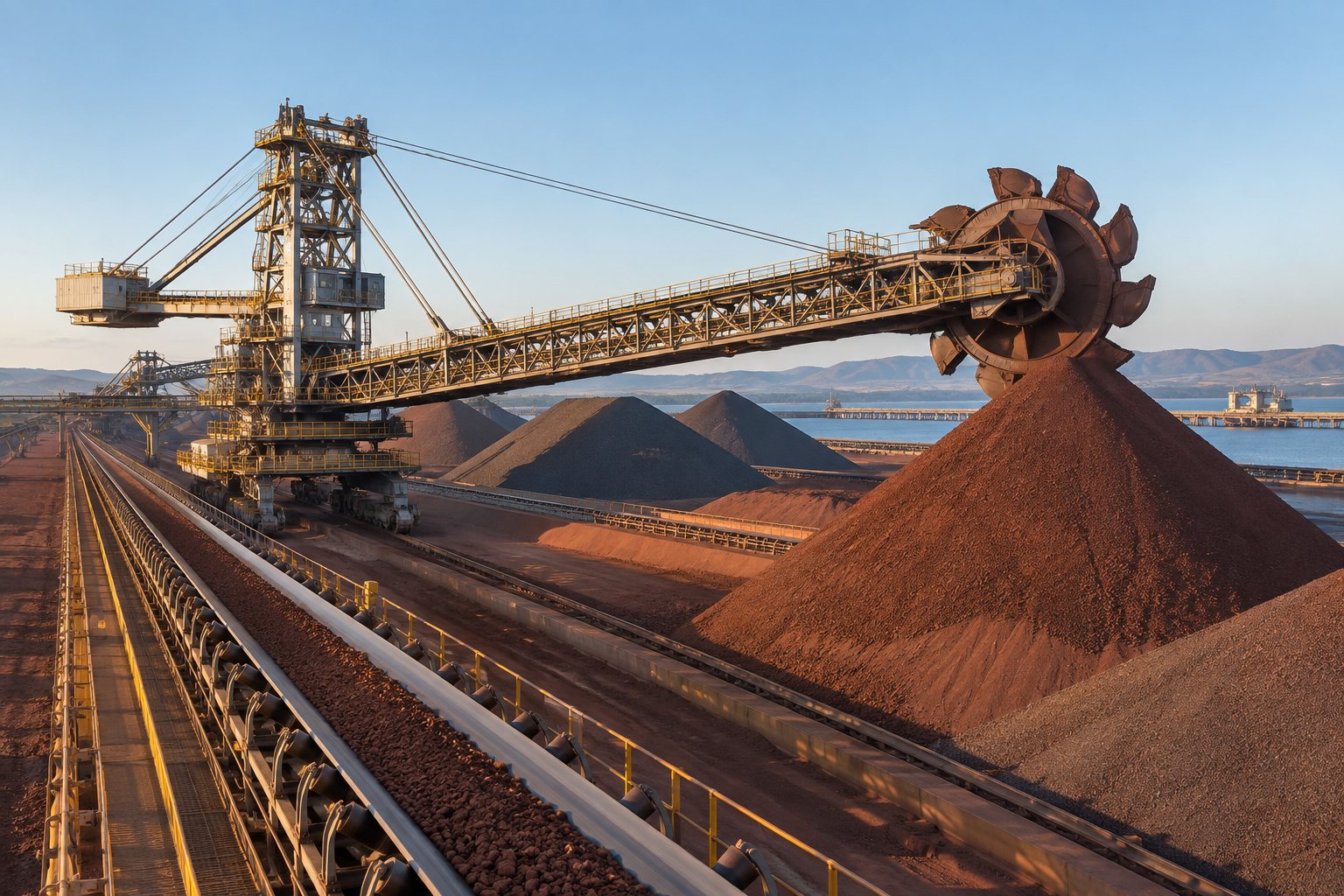

Ore Handling Facilities
Protect the structures that move bulk materials.
Explore systems & guidance →
Workshops & Maintenance Facilities
Coordinate steel protection and floor performance.
Explore systems & guidance →
Conveyor Structures
Corrosion protection along the material-handling route.
Explore systems & guidance →
Crushers & Screens
Protect external steel around demanding processing equipment.
Explore systems & guidance →
Mining Storage Tanks
Specify tank exteriors and linings as separate systems.
Explore systems & guidance →SYSTEM SELECTION
Three routes to the right protection.
| System | Why select it | Coating build | Total DFT |
|---|---|---|---|
| ALKA-9930 Premium External | Premium corrosion protection combined with a UV-stable, colour-retentive finish Abrasive-blasted carbon steel; external industrial and coastal atmospheric exposure | Alka 404 zinc-rich epoxy primer → Alka 413 high-build epoxy → Alka 421 polyurethane finish | 250–300 µm |
| ALKA-9932 Maintenance / Refurbishment | Reduces preparation demands and supports practical maintenance programs Existing steel where full abrasive blasting is restricted; hand- or power-tool prepared areas | Alka 412 surface-tolerant epoxy × 2 coats → optional Alka 421 polyurethane finish | 200–400 µm plus optional 50–75 µm finish |
| ALKA-9935 Glass-Flake Barrier Lining | High-build glass-flake barrier delivers strong resistance to permeation, wet service and abrasion Prepared steel or concrete exposed to wet service, abrasion, splash, spillage or aggressive industrial conditions | Substrate-specific primer where required → Alka 414 Glass Flake Epoxy → optional approved build or finish coat | 400–750 µm |
DFT = dry-film thickness. These are nominal system totals; individual-coat thicknesses and application conditions belong in the final coating schedule.
PLAN THE SPECIFICATION
Define the duty before choosing the coating.
New steelwork
Match the primer, barrier and finish to the exposure. Include preparation, fabrication details and the required appearance.
Maintenance
Assess the existing coating and achievable preparation. Set repair boundaries and plan application and cure within the shutdown.
Linings & containment
Define the liquid or chemical, temperature, contact duration and substrate. Agree the complete lining and inspection schedule.
PRODUCTS & TECHNICAL DOCUMENTS
Go directly to the product information.
Read the published technical data sheets below, or open a product overview. Request the current SDS set and confirm the document revisions for your specification before procurement.
MANUFACTURER TECHNICAL SUPPORT
Turn the service conditions into a coating specification.
Send the asset, substrate, exposure and maintenance window. ALKA can help define the coating build, preparation and technical documentation for your review.
