Waterproofing Systems

ALKA COATINGS / ARCHITECTS & SPECIFIERS

Waterproofing systems for the way the area is used.

Four clear layer schedules for tiled wet areas, pedestrian decks, vehicle traffic and specialist spray polyurea. Compare the intended exposure, then open each system for its schematic, product sequence and specification hold points.

Explore four systems
01 / Define the exposureIs the membrane tiled, exposed, partly covered or subject to traffic?
02 / Design every interfaceFalls, drains, joints, thresholds and penetrations determine continuity.
03 / Confirm the complete buildUse the current product data and project-specific ALKA approval.
SYSTEM SELECTOR

Choose by finish and duty.

The cards show the intended layer order from top to substrate. Final thickness, reinforcement, compatibility, slip resistance and construction details need project confirmation.

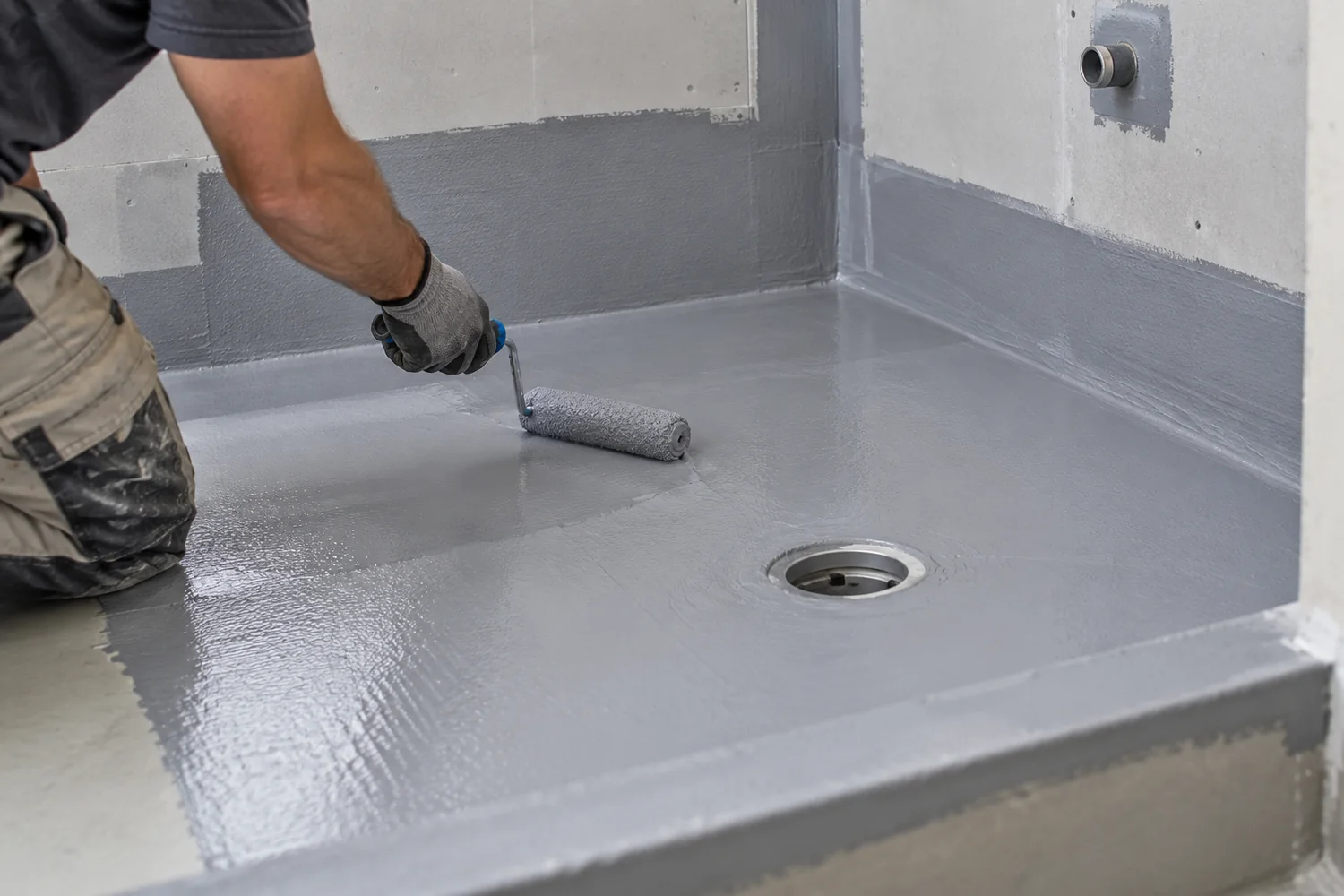

Applicator rolling waterproofing membrane across a bathroom shower floor before tiling
System 01 / Internal wet areas / tiled external balconies

Tiled wet areas and balconies

A protected membrane below tile: ALKA 305 primer, two ALKA 312 coats and a compatible tile adhesive.

Tiles + compatible adhesiveALKA 312 × 2ALKA 305 × 1
Explore layers, schematic and details →

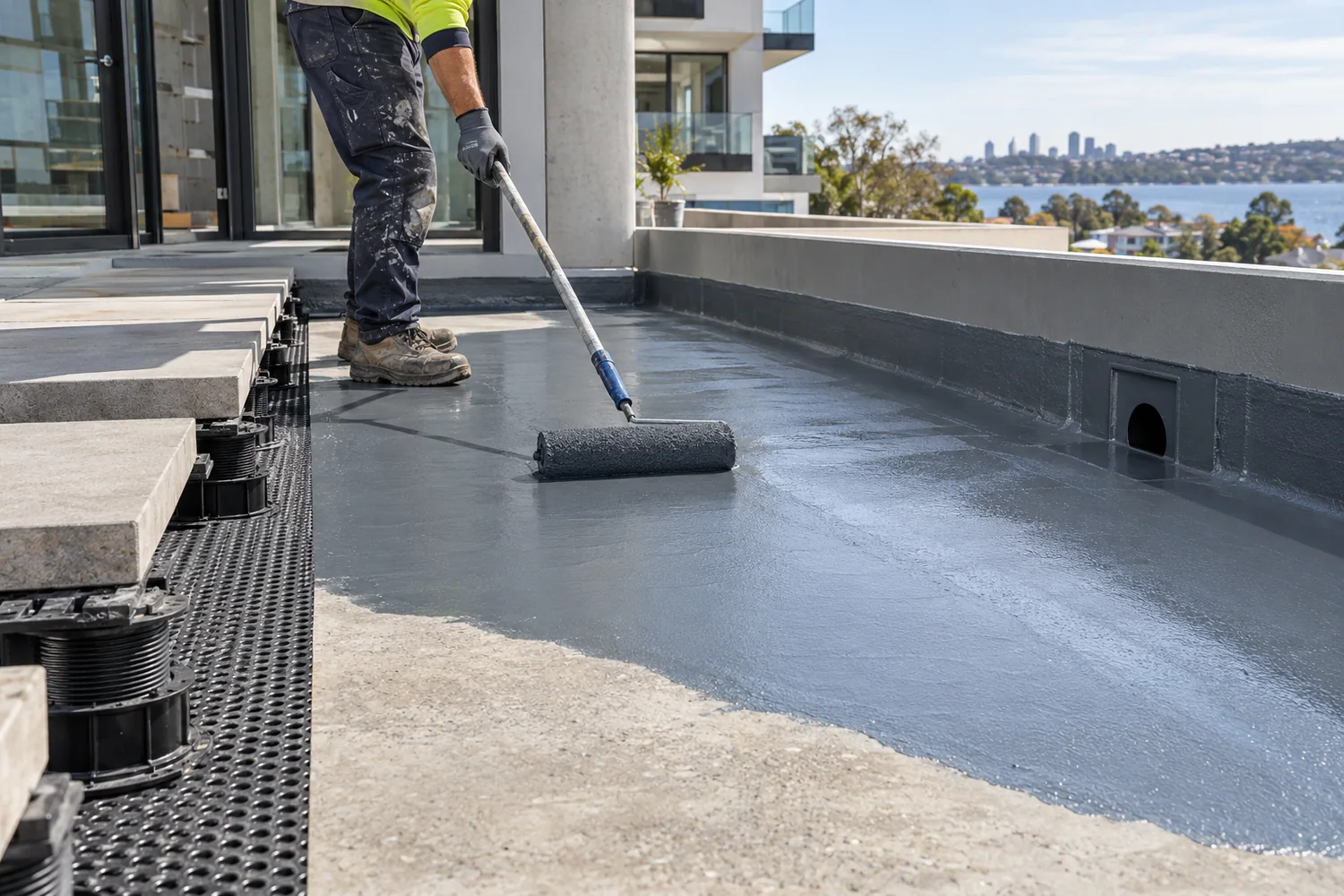

Applicator waterproofing an external pedestrian deck beside raised pavers
System 02 / Exposed foot traffic / partly covered by pavers

Pedestrian decks and paver areas

A pedestrian membrane build: ALKA 305 primer and two coats of ALKA 310, with paver protection detailed separately.

Pedestrian / protected paversALKA 310 × 2ALKA 305 × 1
Explore layers, schematic and details →

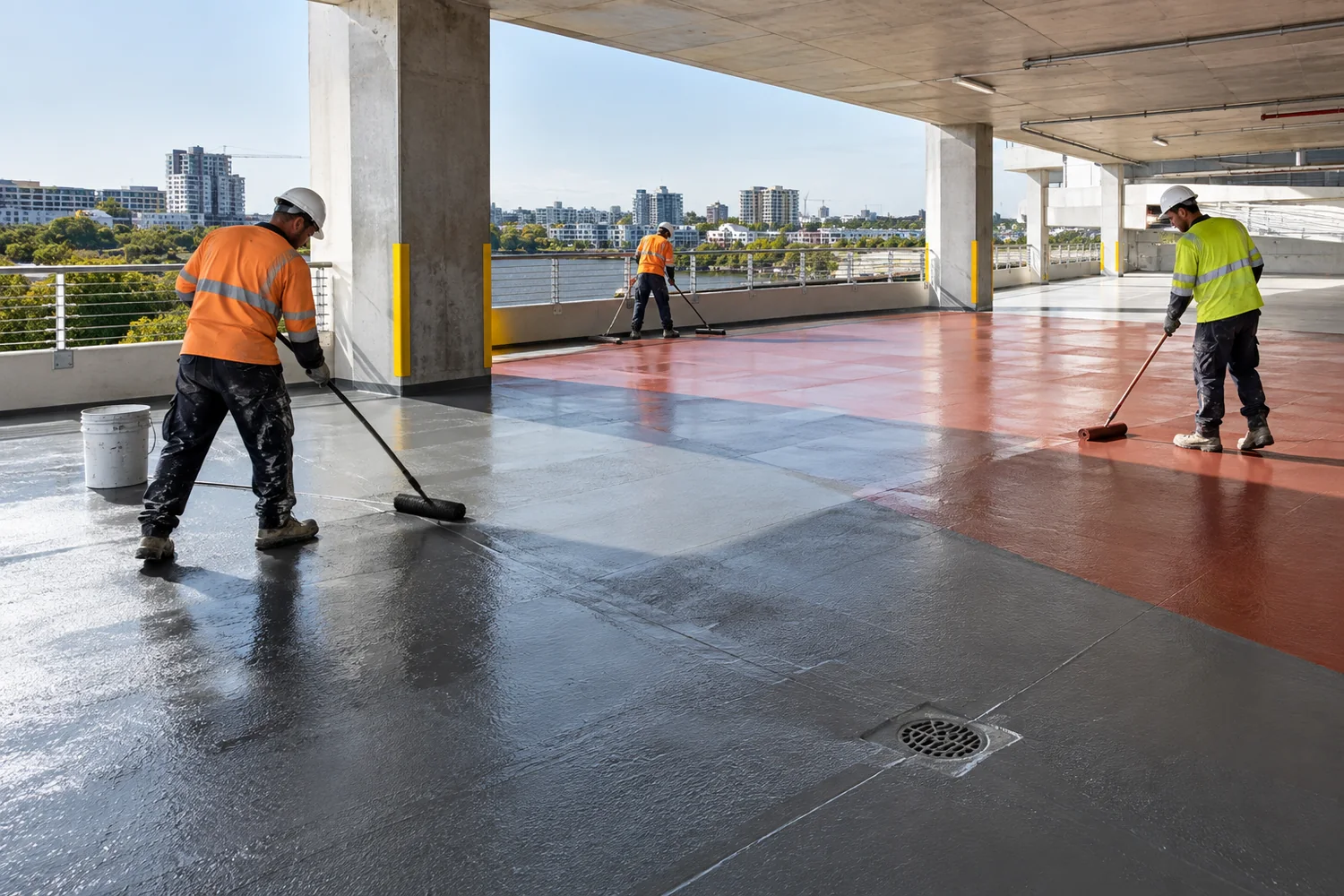

Applicators applying a waterproof membrane and traffic coating to a vehicle deck
System 03 / External vehicle exposure

Vehicle traffic decks

ALKA 305 primer, two ALKA 310 membrane coats and two coats of a project-approved aliphatic traffic topcoat.

Aliphatic topcoat × 2ALKA 310 × 2ALKA 305 × 1
Explore layers, schematic and details →
Specialist applicator spraying polyurea waterproofing onto a concrete rooftop
System 04 / Fast-curing specialist waterproofing

Spray polyurea membrane

ALKA 305 primer followed by ALKA 801 or ALKA 802 spray polyurea to the specified thickness, typically around 2 mm.

ALKA 801 or 802 · ~2 mmALKA 305 × 1Prepared substrate
Explore layers, schematic and details →

Application images are AI-generated illustrations, not photographs of completed ALKA projects. Use each system page and current technical documents to confirm suitability for the project.

Specification starts beyond the membrane.

Provide drawings and conditions for substrate, falls, drainage, movement joints, penetrations, thresholds, exposure and surface finish. The NCC wet-area provisions and external waterproofing requirements, including AS 3740 and AS 4654 where applicable, must be checked for the building and jurisdiction. A listed build alone does not certify the assembly.

Browse waterproofing products   ·   Request a project system review

System concepts prepared from ALKA’s supplied layer schedules and current public product information. Recheck current TDS/SDS and written project detail before tender, installation or warranty commitments.
