ALKA-9931

General Industrial Protective Coating System

High-performance industrial coating system for structural steel requiring reliable corrosion protection, durable epoxy barrier performance and a UV-stable polyurethane finish.

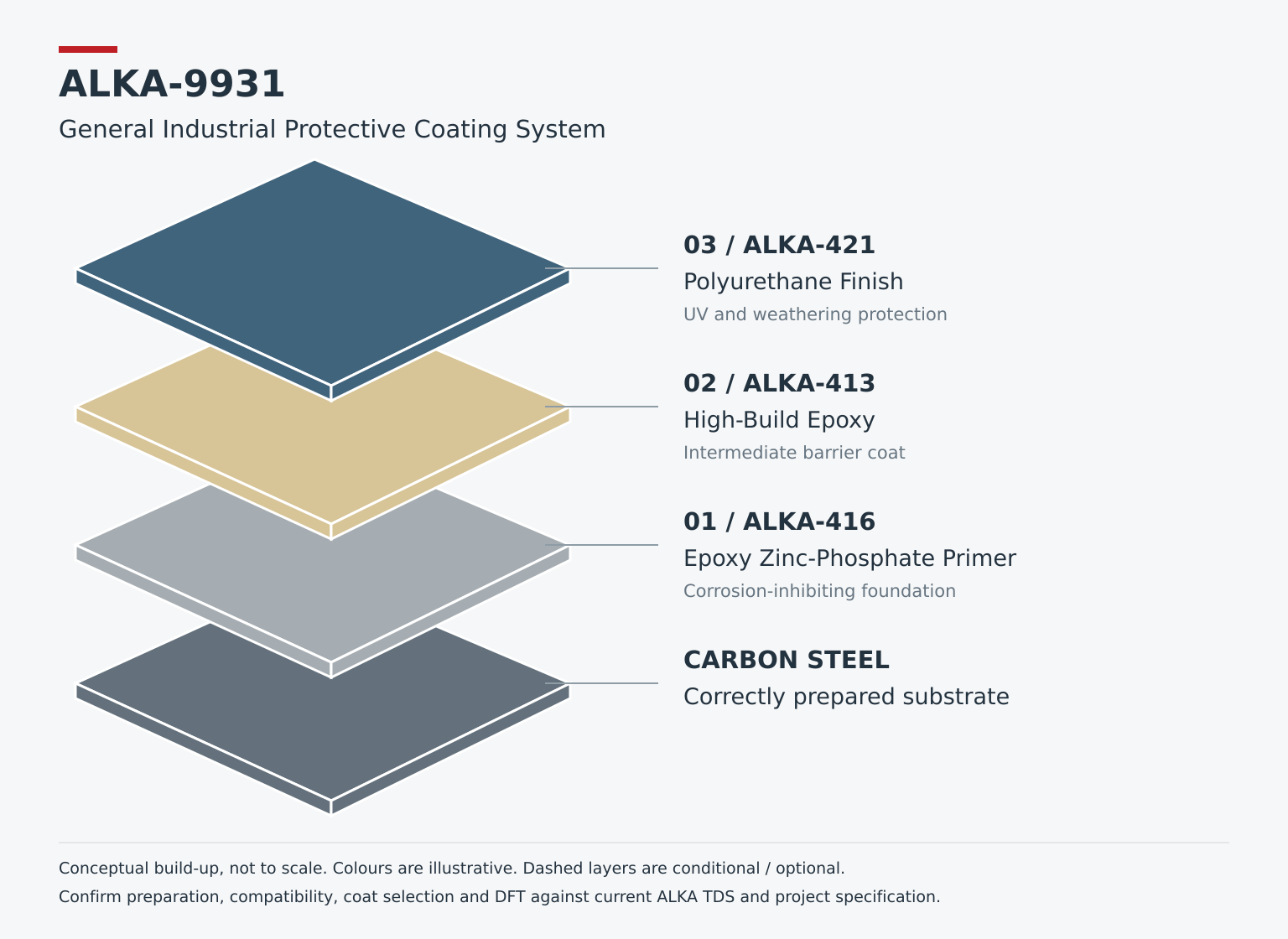

PROTECTION STRATEGY

ALKA-9931 uses a Corrosion-Inhibiting Primer + High-Build Barrier + Weathering Finish approach.

Each coat performs a specific role within the complete protective system.

Epoxy Zinc-Phosphate Primer

ALKA-416 forms the first protective layer directly over prepared steel and provides corrosion-inhibiting primer performance.

High-Build Epoxy Barrier

ALKA-413 increases the total coating thickness and provides the principal physical barrier against moisture, atmospheric contaminants and normal industrial exposure.

Polyurethane Finish

ALKA-421 forms the final exposed surface of the system, providing improved UV resistance, weatherability, colour retention and final appearance.

This combination provides a more complete protective system than a simple primer-and-topcoat specification while avoiding the additional cost and surface-preparation requirements associated with a zinc-rich primer where that level of protection is not required.

KEY PERFORMANCE BENEFITS

• Complete three-coat industrial corrosion-protection system
• Designed for prepared carbon steel
• Epoxy zinc-phosphate corrosion-inhibiting primer
• High-build epoxy intermediate barrier protection
• UV-resistant polyurethane exterior finish
• Good long-term colour and appearance retention
• Suitable for moderate internal industrial atmospheric exposure
• Suitable for moderate external industrial atmospheric exposure
• Increased protective film build compared with basic two-coat systems
• Suitable for both functional and visible industrial steelwork
• Practical balance between corrosion protection, appearance and cost
• Suitable for new fabricated steel structures
• Suitable for machinery, equipment and support structures
• Suitable for general industrial infrastructure
• Professional finished appearance
• Broad applicability across manufacturing, warehousing and processing facilities
• Best-value upgrade where a complete three-coat system is required without a zinc-rich primer

COAT 1 — ALKA-416 Epoxy Zinc-Phosphate Primer

Function: Corrosion-Inhibiting Epoxy Primer

ALKA-416 is applied directly to the correctly prepared steel substrate and forms the foundation of the ALKA-9931 system.

The zinc-phosphate pigmentation provides corrosion-inhibiting primer performance while the epoxy binder provides strong adhesion and establishes a suitable base for the subsequent high-build epoxy coat.

Its purpose is to protect the steel/coating interface and provide a reliable primer for general industrial atmospheric service.

Product: ALKA-416 Epoxy Zinc-Phosphate Primer
Position: Directly over prepared carbon steel
Primary Function: Corrosion inhibition, adhesion and substrate protection
Nominal DFT: To project specification and current ALKA TDS

COAT 2 — ALKA-413 High-Build Epoxy

Function: Principal High-Build Barrier Coat

ALKA-413 forms the main barrier layer within ALKA-9931.

The intermediate epoxy coat increases the total protective film thickness and reduces the ability of atmospheric moisture and contaminants to reach the primed steel surface.

This high-build layer is an important distinction between ALKA-9931 and simpler primer/topcoat specifications.

It provides the system with additional protective reserve and makes ALKA-9931 suitable for general industrial environments where a more substantial barrier system is required.

Product: ALKA-413 High-Build Epoxy
Position: Intermediate coat
Primary Function: High-build physical barrier and increased system film thickness
Nominal DFT: To project specification and current ALKA TDS

COAT 3 — ALKA-421 Polyurethane Finish

Function: UV-Resistant Weathering and Appearance Coat

ALKA-421 forms the final exposed surface of ALKA-9931.

While the epoxy layers provide the principal corrosion and barrier protection, the polyurethane finish provides improved resistance to sunlight and atmospheric weathering while delivering the specified final colour and appearance.

This makes the system suitable for externally exposed or visually important industrial steelwork where an epoxy-only finish would not provide the desired long-term appearance retention.

Product: ALKA-421 Polyurethane Finish
Position: Final exposed coat
Primary Function: UV resistance, weatherability, colour retention and final appearance
Nominal DFT: To project specification and current ALKA TDS

Nominal Total System DFT: 225–275 μm

The stated system DFT is a nominal selection range for ALKA-9931.

Final individual coat thicknesses, total DFT and application requirements must be confirmed against the current ALKA technical data sheets and the requirements of the specific project.

SUITABLE SUBSTRATES

ALKA-9931 is primarily intended for:

Prepared Carbon Steel

Typical substrates and fabricated components include:

• Structural steel sections
• Steel columns and beams
• Fabricated equipment frames
• Machinery support structures
• Pipe supports and utility steelwork
• Platforms and access structures
• Steel skids
• Frames and brackets
• Workshop steel structures
• Warehouse structural steel
• Plant-room steelwork
• General industrial fabricated carbon steel

Other substrates including galvanised steel, aluminium, stainless steel or previously coated surfaces should be assessed separately before applying the standard ALKA-9931 build.

SERVICE & EXPOSURE ENVIRONMENT

ALKA-9931 is primarily designed for moderate internal or external industrial atmospheric service.

Typical exposure conditions include:

• General manufacturing environments
• Industrial workshops
• Warehousing facilities
• Plant rooms
• Equipment areas
• Moderate external weather exposure
• General industrial humidity
• Intermittent condensation
• Normal industrial atmospheric contamination
• Exterior steel requiring UV-stable final appearance
• Internal steel requiring a durable protective coating system

The system is particularly useful where an asset requires more comprehensive protection than a basic maintenance coating but the exposure severity does not justify the zinc-rich primer used in a premium system such as ALKA-9930.

Industrial Machinery

Protective coating of fabricated machinery frames, machine bases, housings, support structures and suitable externally exposed equipment components.

ALKA-9931 is well suited where machinery requires both durable corrosion protection and a professional polyurethane-finished appearance.

Equipment Support Frames & Skids

Fabricated steel skids, equipment bases, support frames and structural assemblies used within manufacturing, processing and industrial facilities.

These assets commonly require good barrier protection while remaining visible and accessible within the facility.

Workshop Structural Steel

Steel columns, beams, frames, mezzanine structures, equipment supports and other structural components within mechanical, automotive and industrial workshops.

Warehouse Steelwork

Structural steel frames, columns, beams, loading-area steelwork, equipment supports and other fabricated steel within warehouse environments.

Plant Rooms

Steel frames, equipment bases, supports, brackets, platforms and structural steel located within mechanical, utility and process plant rooms.

Manufacturing Facilities

Structural steel, machinery supports, platforms, service frames and general fabricated steel throughout manufacturing and production facilities.

Industrial Platforms & Access Structures

Platforms, stairs, access frames, service structures and associated steelwork requiring corrosion protection together with a durable finished appearance.

Utility & Service Structures

Steel supports associated with utility services, mechanical equipment and general industrial infrastructure.

Pipe Supports & Light-Duty Pipe Racks

Pipe supports, brackets and general industrial pipe-rack structures operating in moderate atmospheric environments.

For higher-severity refinery, coastal or aggressive atmospheric exposure, the more severe ALKA protective systems should be considered.

Commercial Industrial Buildings

Visible internal and external structural steel in commercial-industrial buildings where appearance is more important than with a purely functional epoxy system.

Fabricated Steel Equipment

New steel fabrications manufactured off-site and coated before delivery, where a complete three-coat protective system with polyurethane finish is required.

SURFACE PREPARATION

Correct preparation of the steel substrate is essential to the performance of ALKA-9931.

The required preparation standard should be established according to project requirements, exposure severity and the current ALKA-416 technical data.

Before coating, the steel surface should be inspected and appropriately treated for:

• Oil and grease
• Dirt and process contamination
• Rust and corrosion products
• Mill scale
• Dust
• Abrasive residues
• Soluble salts where relevant
• Weld spatter
• Welding residues
• Sharp edges
• Burrs
• Poorly finished welds
• Surface defects
• Moisture and condensation

Edges, welds, bolts, nuts, corners and difficult geometries may require additional attention because these locations are more susceptible to insufficient coating thickness.

Where required by the project coating specification, stripe coating should be carried out before application of the relevant full coat.

APPLICATION CONSIDERATIONS

Application should only proceed when environmental and substrate conditions comply with the requirements of the individual ALKA product technical data sheets.

Important application controls include:

• Ambient temperature
• Steel temperature
• Relative humidity
• Dew point
• Surface dryness
• Mixing ratio
• Mechanical mixing
• Induction period where applicable
• Pot life
• Application method
• Wet-film thickness
• Dry-film thickness
• Minimum recoat interval
• Maximum recoat interval
• Cure condition
• Ventilation
• Protection from contamination between coats

Each layer must be applied at the required thickness and allowed to reach the appropriate stage of cure before application of the next coat.

Particular care should be taken to prevent overspray contamination, dust deposition or surface contamination before application of ALKA-421.

INSPECTION & QUALITY CONTROL

For specification-grade industrial coating work, quality control should be carried out throughout the application process.

Depending on the project, inspection may include:

• Verification of substrate condition
• Verification of required surface preparation
• Surface-profile assessment where required
• Environmental-condition recording
• Dew-point monitoring
• Visual inspection before priming
• Inspection of edges and welds
• Verification of stripe coating
• Wet-film thickness measurements
• Dry-film thickness measurements
• Recoat-window verification
• Inspection for missed or thin areas
• Final colour and appearance inspection
• Final total DFT verification
• Recording of product batch numbers
• Recording of application dates and conditions

The coating system should not be accepted solely on appearance. Required film thickness and application quality are fundamental to long-term performance.

WHY SPECIFY ALKA-9931?

ALKA-9931 should be specified where the project requires a complete and dependable general-industrial protective coating system but does not require the premium zinc-rich primer strategy of ALKA-9930.

The protective logic is:

ALKA-416 provides corrosion-inhibiting primer protection.

ALKA-413 provides the principal high-build epoxy barrier.

ALKA-421 provides UV stability, weather resistance and final appearance.

This combination delivers a strong balance of corrosion protection + barrier performance + exterior appearance + project economics.

It is therefore a practical system for a broad range of industrial assets where using only a primer and finish coat would provide less barrier protection, while a zinc-rich premium specification may be unnecessary.

WHEN TO CHOOSE ALKA-9931 INSTEAD OF ALKA-9930

ALKA-9931 and ALKA-9930 share a similar three-stage coating philosophy, but they are positioned differently.

Choose ALKA-9931 when:

• The environment is moderate industrial atmospheric exposure
• A complete three-coat system is required
• Zinc-phosphate primer protection is appropriate
• Good exterior appearance is required
• Project economics are important
• A zinc-rich primer is not required by the specification
• The asset is general industrial steelwork rather than a premium severe-exposure structure

Consider ALKA-9930 when:

• A premium zinc-rich primer system is required
• Corrosion severity is higher
• Coastal exposure is more demanding
• The structure is high-value or difficult to maintain
• The project specification specifically requires zinc-rich primary protection

The final selection must still be based on actual exposure severity and project requirements.

LIMITATIONS

ALKA-9931 is intended principally for moderate industrial atmospheric exposure.

It should not automatically be specified for:

• Continuous immersion
• Internal tank lining
• Chemical storage tank internals
• Direct chemical containment
• Severe chemical splash
• Buried steel
• Severe offshore service
• Severe splash zones
• Tidal zones
• Permanent seawater immersion
• High-temperature service outside product limitations
• Substrates not approved for the specified primer
• Existing unknown coatings without compatibility assessment

For these exposures, a more specialised ALKA protective coating or lining system should be selected.

SPECIFICATION GUIDANCE

A complete ALKA-9931 coating specification should define, as applicable:

Substrate → Exposure Environment → Surface Preparation Standard → Required Surface Profile → Edge & Weld Preparation → Stripe Coating → ALKA-416 Primer → Primer DFT → ALKA-413 High-Build Epoxy → Intermediate DFT → ALKA-421 Polyurethane Finish → Finish DFT → Nominal Total DFT 225–275 μm → Colour → Gloss → Recoat Windows → Environmental Limits → Inspection → Acceptance Criteria

The specification should also identify areas requiring special detailing, including welds, bolts, sharp edges, inaccessible locations and complex fabricated geometry.

SYSTEM POSITIONING

ALKA-9931 is best positioned as the best-value general industrial three-coat system in the ALKA protective coating range.

It sits between basic maintenance systems and the premium zinc-rich ALKA-9930 system.

For customers, engineers and asset owners, the key proposition is:

Reliable industrial corrosion protection, substantial epoxy barrier performance and a durable polyurethane finish — without automatically requiring a premium zinc-rich primer system.

Application Examples

Representative applications; final system selection depends on substrate, preparation and service conditions.

Platforms & Access Structures

Photographic visuals on this page are AI-generated application illustrations, not completed ALKA projects. Colours are illustrative. The system schematic is conceptual and not to scale; refer to current ALKA technical data and project specifications.
